Chemical Blender Mixing Equipment Conical Mixer

  • Chemical Blender Mixing Equipment Conical Mixer
  • Chemical Blender Mixing Equipment Conical Mixer
  • Chemical Blender Mixing Equipment Conical Mixer
  • Chemical Blender Mixing Equipment Conical Mixer

Chemical Blender Mixing Equipment Conical Mixer

    Payment Type: T/T
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 60 Days
    Packaging: Wooden pallets/ Cartons/Plastic stretch-wrap
    Brand: Zhang
    Transportation: Ocean
    Place of Origin: Jiangsu Wuxi
    Supply Ability: 110/Year
    Certificate: CE
    Port: Shanghai

Product Description

Main Application

This series of machine is one high efficient Mixing Equipment, which is widely applied in mixing solid-solid status materials(powder-powder), as well as mixing solid-liquid status materials (powder materials added with liquid materials) from the chemical,pharmaceutical,fertilizer,dye,metallurgy,mine,food,monosodium glutamate,fodder industries.This equipment is adaptable and flexible to the mixture, cannot cause heat sensitive materials overheated and cannot grate partical materials.

Working Principle

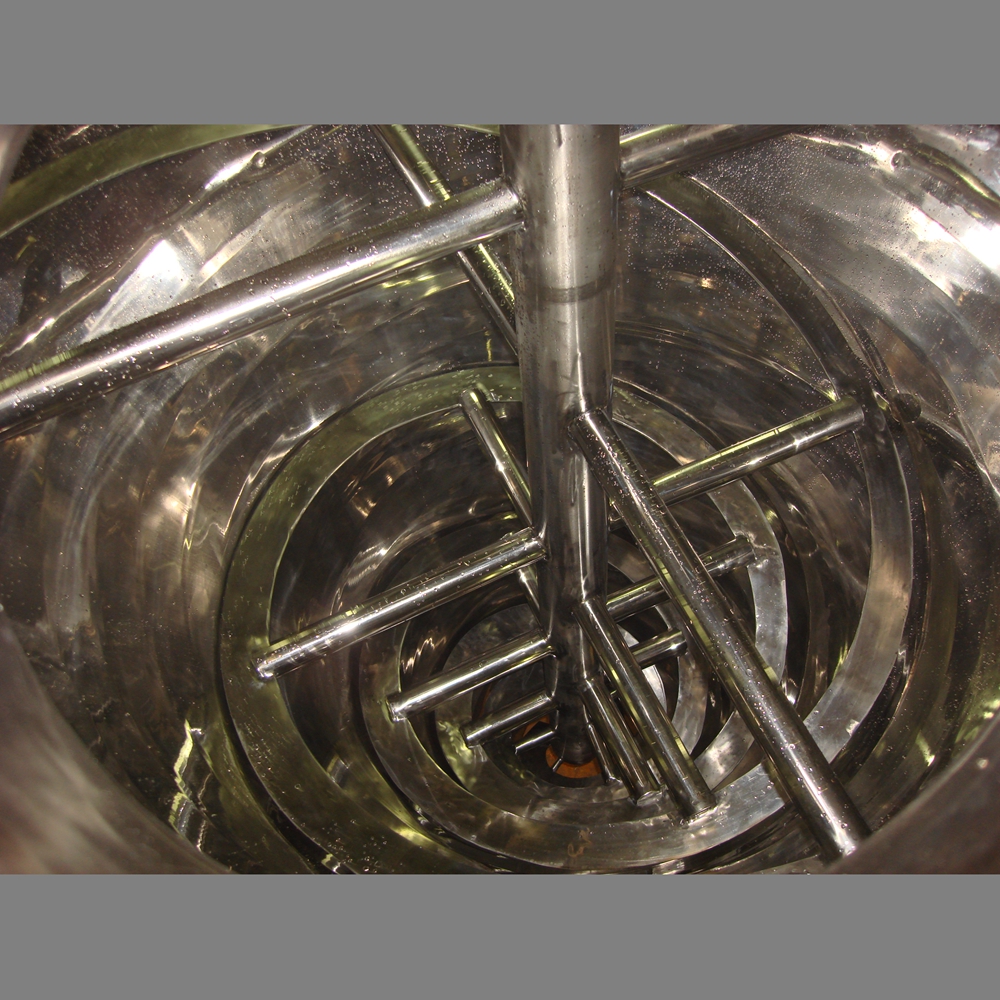

The machine is mainly composed of mixing tank, spiral agitating vane and transmission parts. There are two layers of spiral agitating vane. The outside vanes accumulate the material from side to center, while the inner vanes separate the material from center to side. So that material will mix to each other in convective mixing inside the tank.

Tapered Mixer
Vertical Tapered Mixer

Vertical Tapered Mixer

Semi-finished Products
Vertical Tapered Mixer
Homogenizer Mixer
Technical Parameter
Model
CW-180
CW-300
CW-500
CW-1000
CW-2000
CW-3000
CW-4000
Power(Kw)
1.1
1.1
2.2
4
7.5
11
11
Capacity(kg/batch)
40
60
100
200
400
600
800
Total volume
0.18
0.3
0.5
1
2
3
4
Mixing time(min)
4-8
6-10
6-10
6-10
6-10
6-10
6-10
Speed(r/min)
12
12
12
10
10
8
8
Design / Calculation Software
Custom Service
Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)
2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Vacuum Dryer
5. Plate-fin Heat Exchanger
Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials,
Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
Scope of business
1. On-site Inspection
2.Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
Company Profile


WUXI ZHANGHUA PHARMACEUTICAL EQUIPMENT CO., LTD.

 Wuxi Zhanghua Pharmaceutical Equipment Co. Ltd. was founded in 1976, committed to researching, developing and manufacturing reaction, crystallization, filtration, drying equipment. With the development of the leading technologies for 44 years, our engineering equipment is not only for the pharmaceutical industry, but also for fine chemicals, pesticides, new energy, new materials and other industries. We customize the integrated solution of reaction, crystallization, filtration and drying process equipment for clients.
Our technical team is composed of quality assurance engineers, process engineers, equipment engineers, welding engineers and electrical engineers, and most of them have working experience and engineering project experience for over ten years.
For inflammable, explosive, toxic and corrosive products in pharmaceutical, fine chemical, pesticide and new energy industries, we customize the technology and equipment solution and provide high airtight, high vacuum, fully automatic equipment for clients, to ensure safety, energy conservation and environmental protection of the production process, and compliance with EHS requirements. In addition, we will optimize technology designs for users in order to produce high quality products.
All of our equipment has met FDA and CGMP requirements, ATEX explosion-proof instruction requirements and ASME requirements, and has got PED, MD, LVD certification as well.
The equipment has been exported to several pharmaceutical and chemical enterprises in Asia and Europe, so our engineers in after-sale service department have rich experience abroad.
Wuxi Zhanghua is adhering to the spirit of professionalism, credibility, integrity, innovation and harmony, committed to becoming an advanced international company with high technology and high quality trusted by all the clients. Zhanghua has more than ten intellectual property rights, including patents, software copyright and etc., all of which helps it to keep its excellent sustainability and creativity in the industry. With years of unceasing efforts, Zhanghua has made considerable progress in reaction, crystallization, filtration and drying technology on the equipment, and has established a good image in the field of pharmaceutical and chemical industry.
